Crippa Rapid Series SPINright
Compact and intelligent, these machines contain all of Crippa-SMI’s know-how.
Endforming machines from the Rapid Series are extremely compact and designed to meet less complex production needs, while guaranteeing high levels of accuracy. The extremely compact ergonomics of the endforming machines in this line makes them easy to move and highly suitable for integration into new and existing work cells, also with Profinet communication protocol. The S0 and S1 machines have PLC with self-learning programming systems.
Description

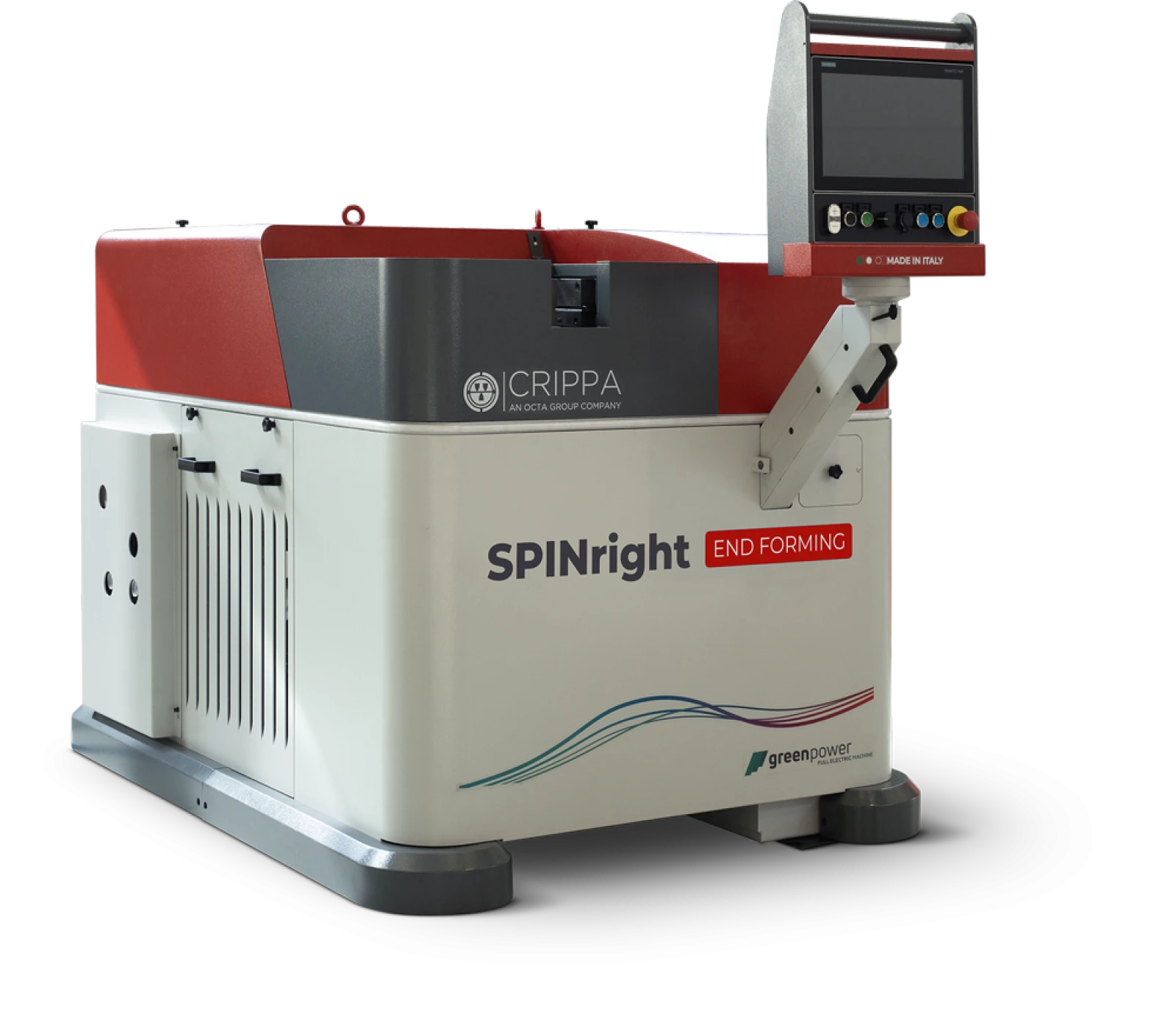

The new Full Electric SPINright end-forming machine, developed by Crippa as an entry-level solution, integrates up to eight different tools on its rotary table, including two rotating units dedicated to facing, cutting, and chamfering operations.
Designed with an extremely compact footprint , the machine processes tubes up to 40 mm in diameter with an 8-ton deformation force, utilizing an electric clamp with an innovative connecting-rod-crank system that maximizes positioning accuracy and opening/closing speed.
The machine features 3 axes managed by an advanced Siemens PLC and is equipped with an adjustable control panel on a telescopic arm, featuring an intuitive programming editor for both specialized and non-specialized users, and a 3D simulator for preventive collision detection.
The overall ergonomics facilitate equipment assembly/disassembly operations through a quick-release system for clamps and punches that drastically reduces setup times.
Furthermore, it is pre-arranged for an additional clamp intended for geometrically more complex processing.
Technical Features
| Tool change | Rotary | |
| Max tube diameter | 40 (28 with cutting unit) | mm |
| Deformation force | 8 | Ton |
| Max deformation stroke | 250 | mm |
| Forming speed | 12000 | mm/min |
| Clamp force | 12 | Ton |
| Clamp stroke | 54 | mm |
| Forming Steps | 8 (2 can be rotary) | |
| Dimensions LxWxH | 1970 x 1356 x 1460 | mm |
Fields of application
- Automotive
- Medical
- Cycles
- Motorcycles
- Aerospace
- Appliances
- Leisure
- HVACR
