Soitaab PLASMAtech RED

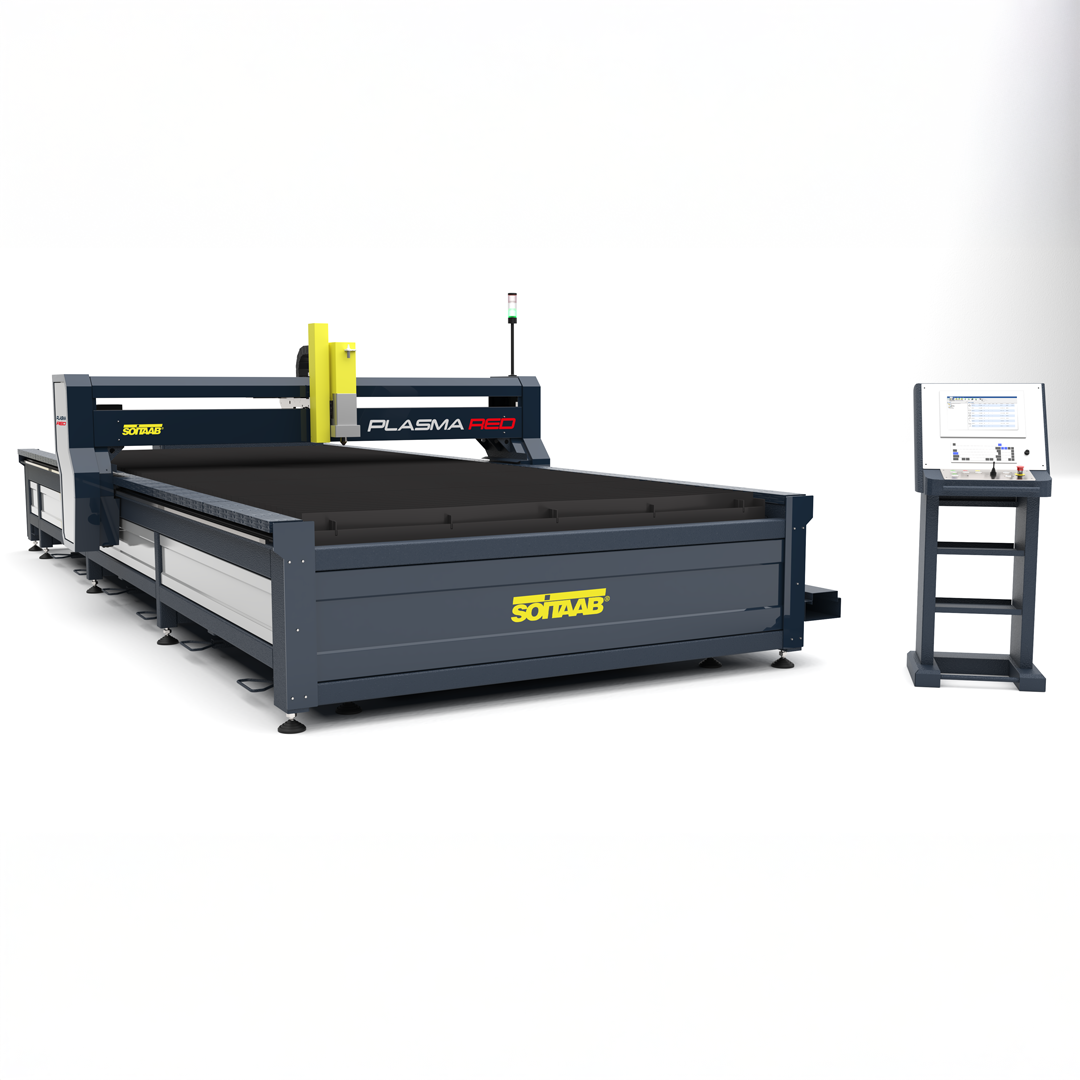

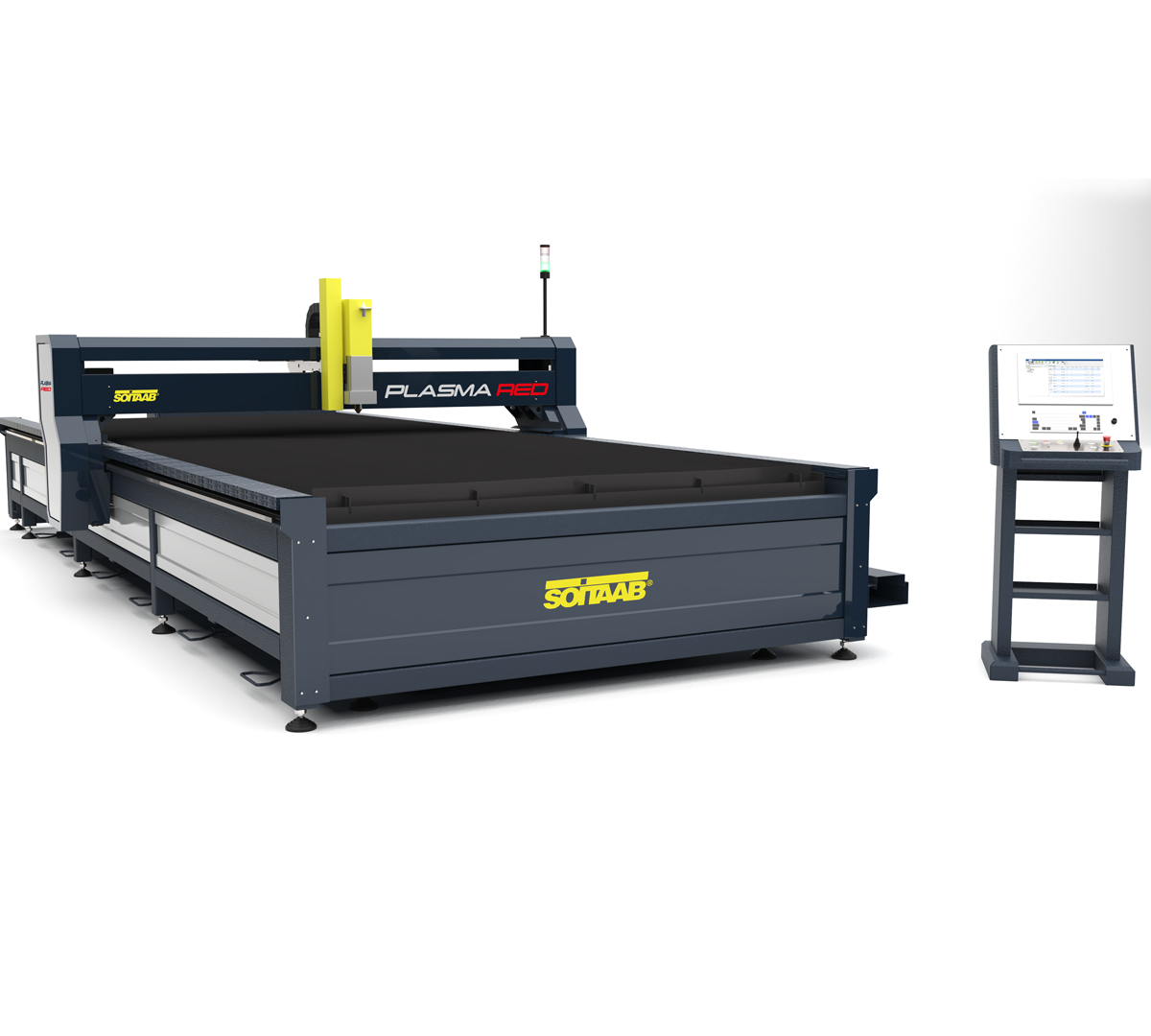

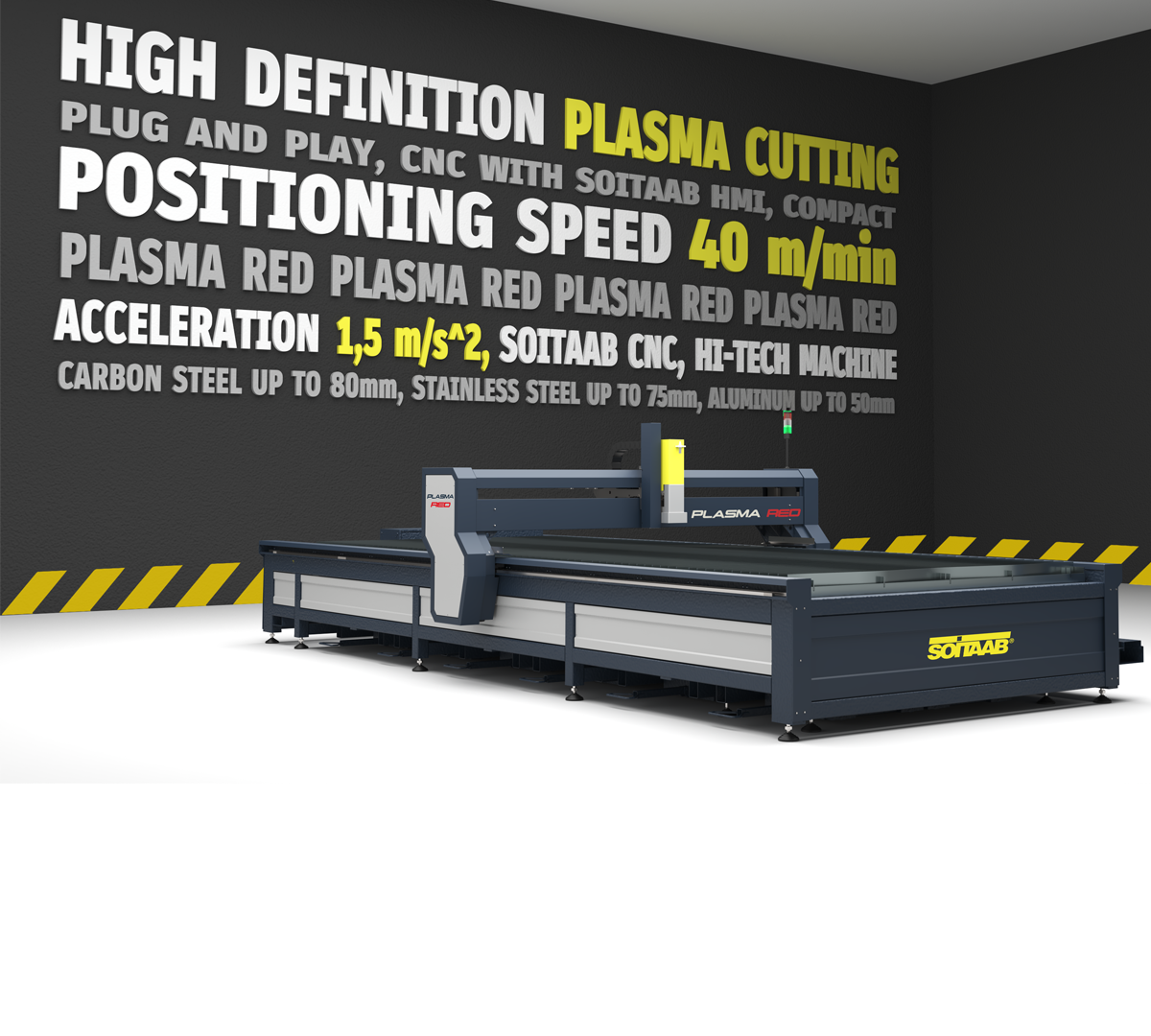

The real plasma solution “plug and play”, PLASMA RED has been designed to perform at its best capability with the most common plasma supply present in the market.
Description
Designed for cutting ferrous, steel and aluminum materials, for thin to medium thicknesses and for plate sizes up to 2 m width and 6 m length, PLASMA RED is employed in steel fabrication and in the HVAC manufacturing field. The CNC control with the operator interface SHMI – (Soitaab Human Machine Interface), specifically developed for the RED model, allows users to fully exploit the high potential of the machine from the very beginning.
The accuracy of positioning is provided by means of an the high rigidity bream structure, the dual brushless drives on longitudinal axis with gantry control, linear guide ways and racks and pinions coupling together to the cutting table completely separated from the machine structure frame.
Particular attention has been dedicated to the protection of all the guideways and the completion with the safety regulations making the PLASMA RED the safest solution ever.
The RED dedicated plasma generator is suitable for high-definition XD cuts.
Plasma available up to 400 amperes.
Technical features
- Portal made of electro-welded steel structure
- Motorised and position-controlled vertical axis
- Torch collision avoidance device
- Initial positioning via electrical or mechanical resistance depending on sheet thickness and application
- Work table separated from machine guide structure
- Modular structure bench with paralysed fume extraction with double channel
- Opening of suction module doors controlled by the movement of the machine itself
- Bench cleaning via laterally removable drawers
- H.M.I – Soitaab Human Machine Interface ( touch screen ) for intuitive and user friendly use of the numerical control
Technical Features
| Working area | da m 1,5 x 3 a m 2,5 x 12 |
| Vertical Z-axis carriage stroke (mm) | 100 |
| Motorisation ( x,y,z ) | Brushless |
| Driver ( x,y,z ) | Digital |
| Positioning speed | 40 m/min |
| Repeatability | + – 0,05 mm/m |
| Numerical control | Soitaab CNC |
| Monitor | 15″ Screen Touch Panel |
| Data communication | USB – Ethernet – LAN |
| Cutting technology | HPR XD or traditional |
