Crippa 755XXS
Tailored answers to your production needs
For almost 80 years Crippa has been in dialogue with its customers, analysing the needs of the market and developing products and services to respond promptly to the different requests coming from different sectors. Thanks to this experience and to our know-how, the T Series was born. A series of tube bending machines very different from each other but kept together by the same goal: responding to the needs of a specific production sector as a tailor would do with a tailored suit.
Description

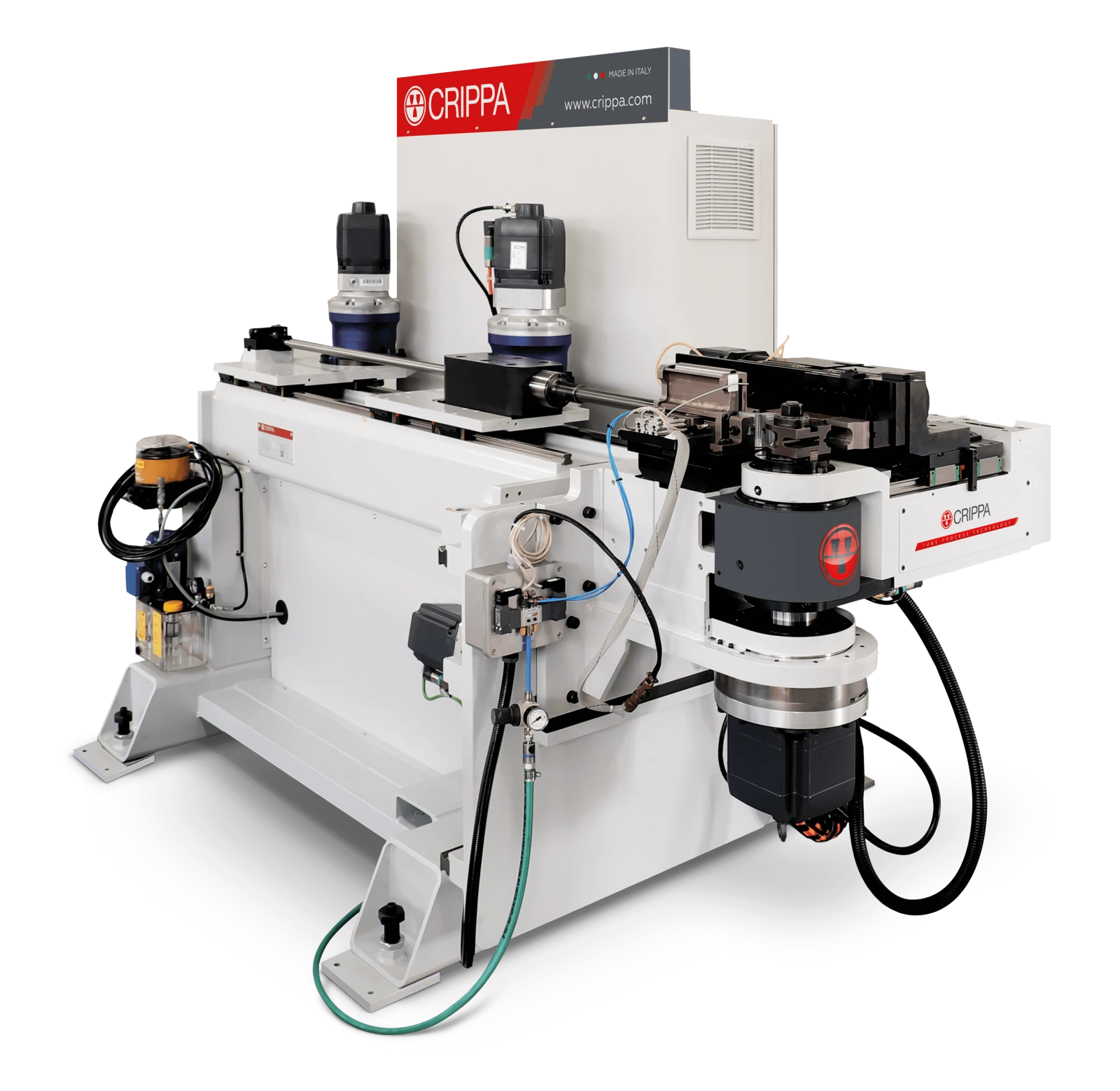

The 755XXS is one of CRIPPA’s best solutions for the world of single level bends as it reflects our dedication to tailored solutions. Even though single-level bending is technically simple, it is a particular area that requires the highest level of productivity and repeatability. The 755XXS is designed for tubes with a diameter of up to 55 mm, however, its most notable feature is the capacity to easily process extra-short tubes. Rigid and compact, this machine occupies minimal floor space. Ergonomic and precise, this single-level tube-bending machine is actuated by 7 “Fully Electric” axes managed by Siemens SINUMERIK 840D sl. The optional active gauge allows the integration of an automated loading/unloading system, while the controlled thrust system guarantees excellent bends. This model can be upgraded with some options to increase process automation in productivity and quality. For example, control and measuring stations and/or shaping units to complete the tube processing within the work cycle. The machine is ideal for automated production and autonomous work cells as they are designed to integrate into the “Smart Factory” system.
Technical Features
| Bending direction | Right of left (reconfigurable) | ←&→ |
| No. CNC axes | 7 | |
| Mild steel max. OD (R=350-450 N/mm²) | 55×2.5 | mm |
| Stainless steel max. OD | 55×2 | mm |
| Max. bending radius | 170 | mm |
| Max. bending speed | 150 | °/sec |
| Workable length of standard tube inside the collet/hitch feeding | 500/- | mm |
| Max. OD for hitch feeding | – | mm |
| Resolution of Y axis | ±0.05 | mm |
| Voltage | 400 | V |
| Mains frequency | 50 | Hz |
| Power | 20 | kW |
| Weight | 3700 | kg |
| Stroke | – | mm |
Fields of Apploication
- HVACR
