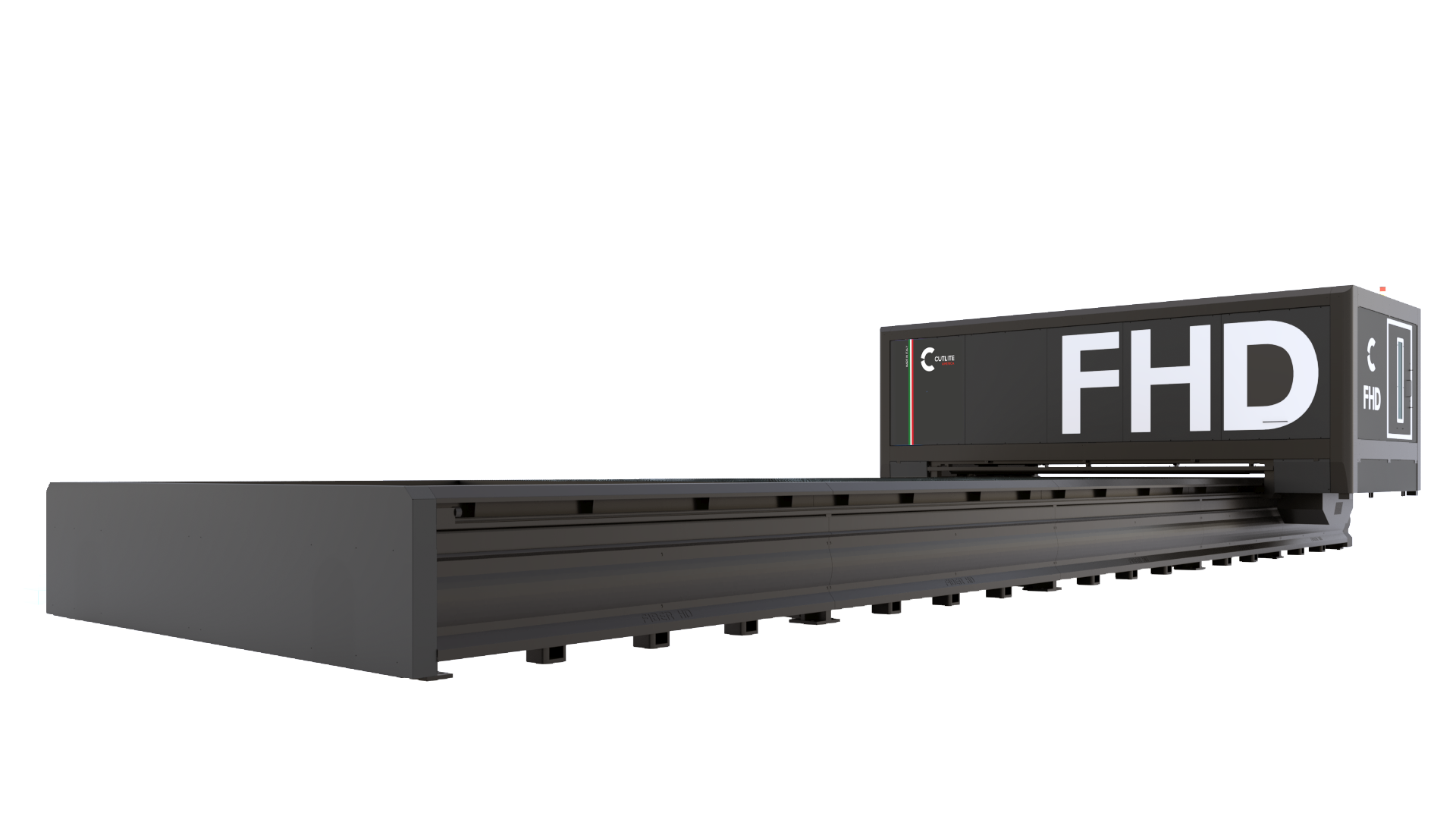

Cutlite FHD Laser Cutting Machine
Large format cutting system
The FIBER HD combines the practicality and simplicity of large format cutting systems with the power of fiber laser technology up to 60kW. The gantry-style cabinet enclosure brings high-performance fiber laser cutting with a small footprint to industrial sectors previously relying on oxy-fuel, plasma, or CO2 cutting technology.
Description
SMART Mix (laser sources 20kW and up)
The SMART Mix option includes a component that enhances the cutting process through hardware technology controlled in real-time by our Smart Manager software. With just a few clicks, the right amount of oxygen and nitrogen can be supplied instantly for cutting varying metal types and thicknesses, saving gas consumption and delivering a cool part for fast removal from the table.

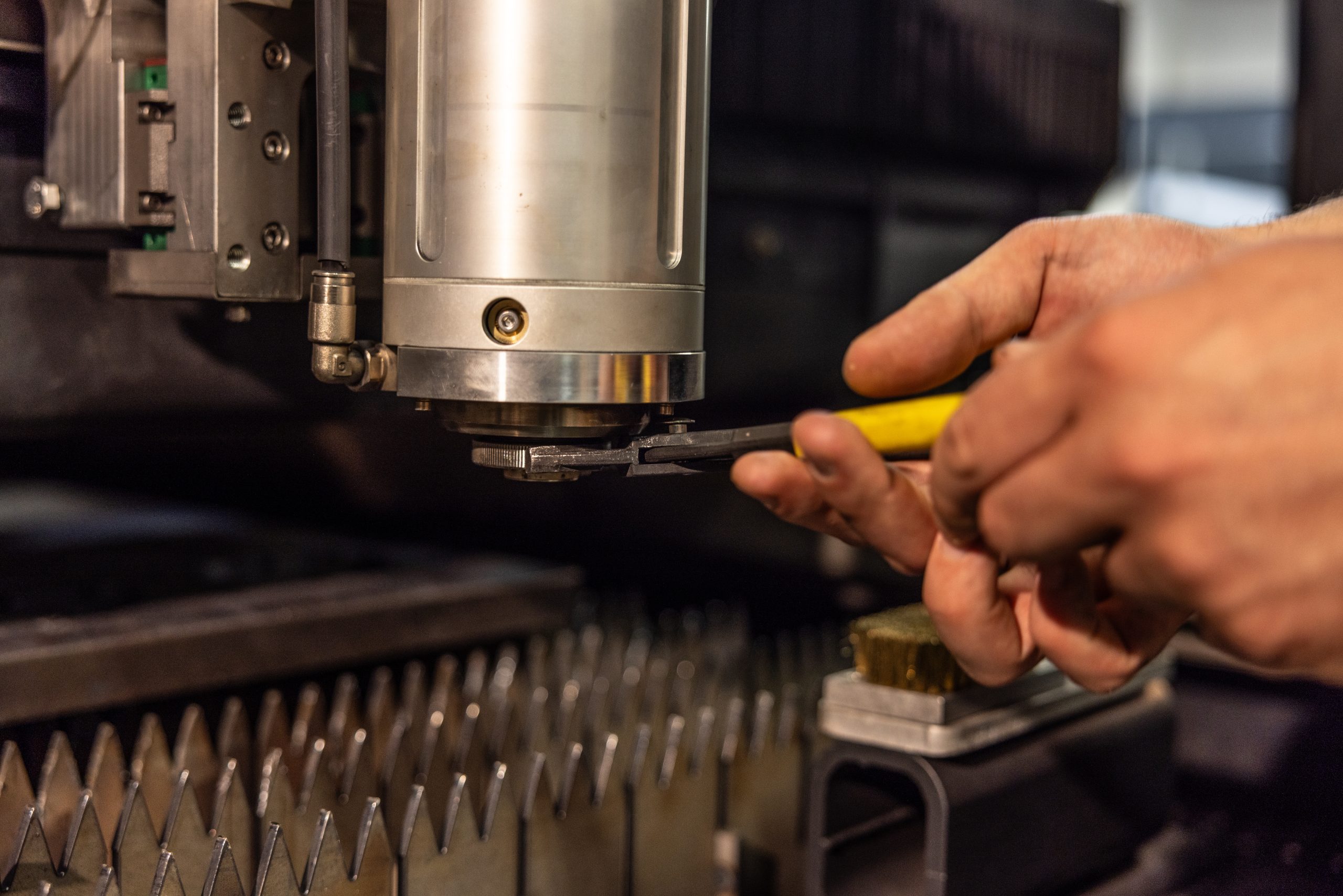

SMART Changer
This upgrade allows the laser machine to automatically replace the cutting head nozzle without operator intervention. Up to 10 positions are available, including both cleaning and calibration functions. This solution, paired with automation, allows for full “lights-out” operation on laser systems with shuttle tables.

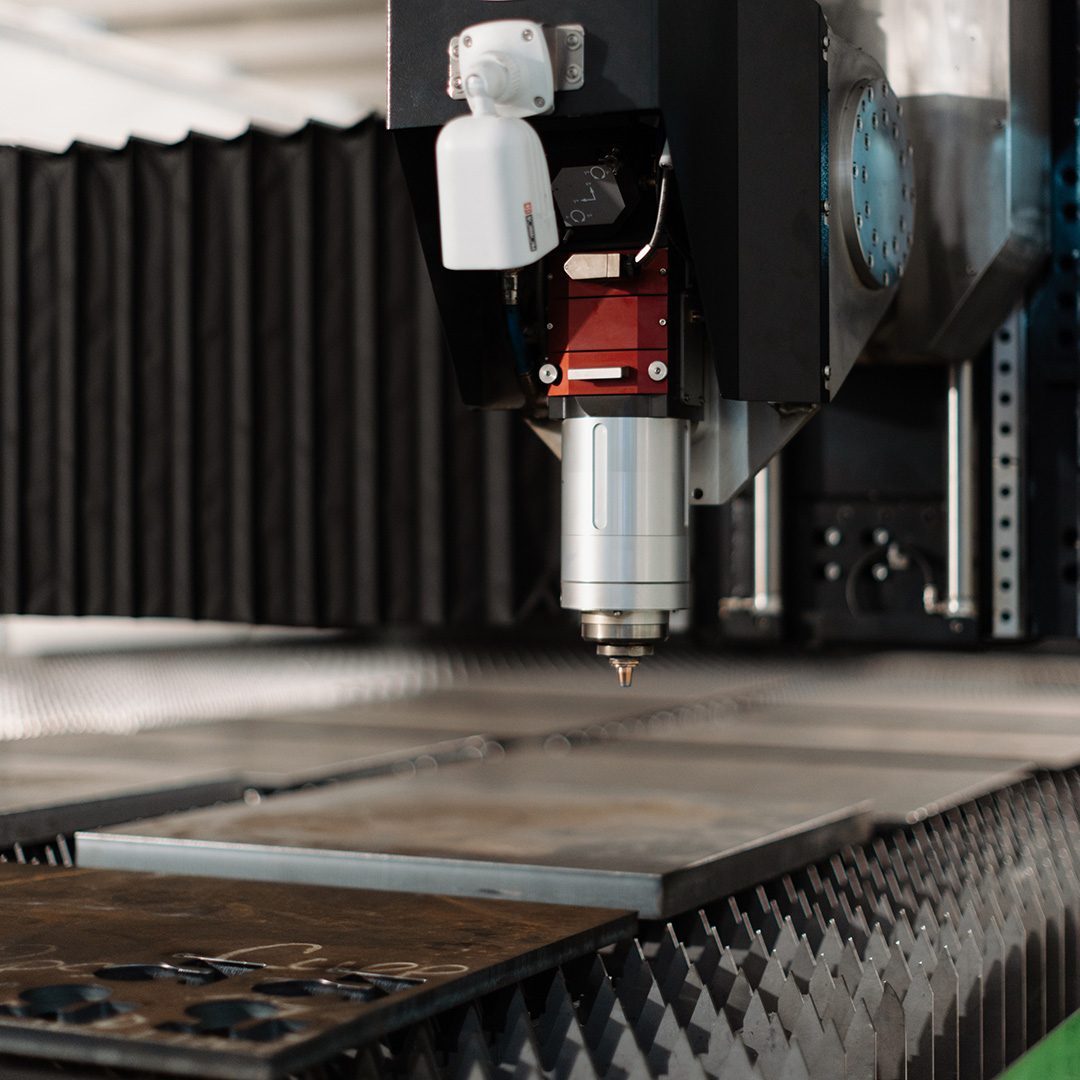

SMART Camera
Multiple cameras may be installed inside the laser cabin for multi-angle remote viewing. One camera is included with the system.
SMART Drill
The optional 6-position tooling turret increases the flexibility of the FIBER HD laser cutting system. The SMART Drill adds mechanical machining options, such as drilling, countersinking, thread-cutting and filing, to the FIBER HD laser system.
SMART Raster
SMART Raster is an optional software tool that allows the machines to raster identification numbers or images on stainless steel.
Stationary Worktable
The FIBER HD system features a robust steel table structure, extended along the x-axis, ensures fast and trouble-free loading and unloading of large plates with a forklift or existing overhead cranes.
Available Configurations
- Working area up to 79′ Long
- Working area up to 12′ Wide
Power Source Options
- IPG 6kW to 60kW
- Raycus 4kW to 20kW
Comparison of All Machines
| XME | FAST | FiberHD | Plus Bevel | Plus Evo | |
| Cutting Thickness | up to 1″* | up to 1″ | up to 4″ | up to 4″ | up to 4″ |
| Bevel (Y/N?) | No | No | Yes | Yes | No |
| Power Up To | 20kW | 20 kW | 60kW | 60kW | 60kW |
| Working Area up to | 20.4’ X 8.4’ | 19.9 x 6.7 ft. | Custom | Custom | Custom |
| Max Acceleration | 2G | 4G | 1.2G | 1.8G | 3.2G |
| Nozzle Change | Yes | Yes | No | Yes | Yes |
| Gas Mix | Yes | Yes | Yes | Yes | Yes |
| LIFT Table | Upgrade | Yes | No | Yes | Yes |
| 2 level shuttle table | Yes | Yes | No | Yes | Yes |
| Table Weight Capacity | 2 sheets of 1.5″ thick | 2 sheets of 1″ thick | 1 sheet of 4″ thick | 2 sheets of 4″ thick | 2 sheets of 4″ thick |
| Linear Drive | No | Yes | No | Yes | Yes |
| Rack & Pinion Drive | Yes | No | Yes | No | No |
| Automation Ready | Yes | Yes | No | Yes | Yes |
| IPG Resonator | Yes | Yes | Yes | Yes | Yes |
| Raycus Resonator | Yes | No | Yes | No | No |
| Made in Italy | Yes | Yes | Yes | Yes | Yes |
