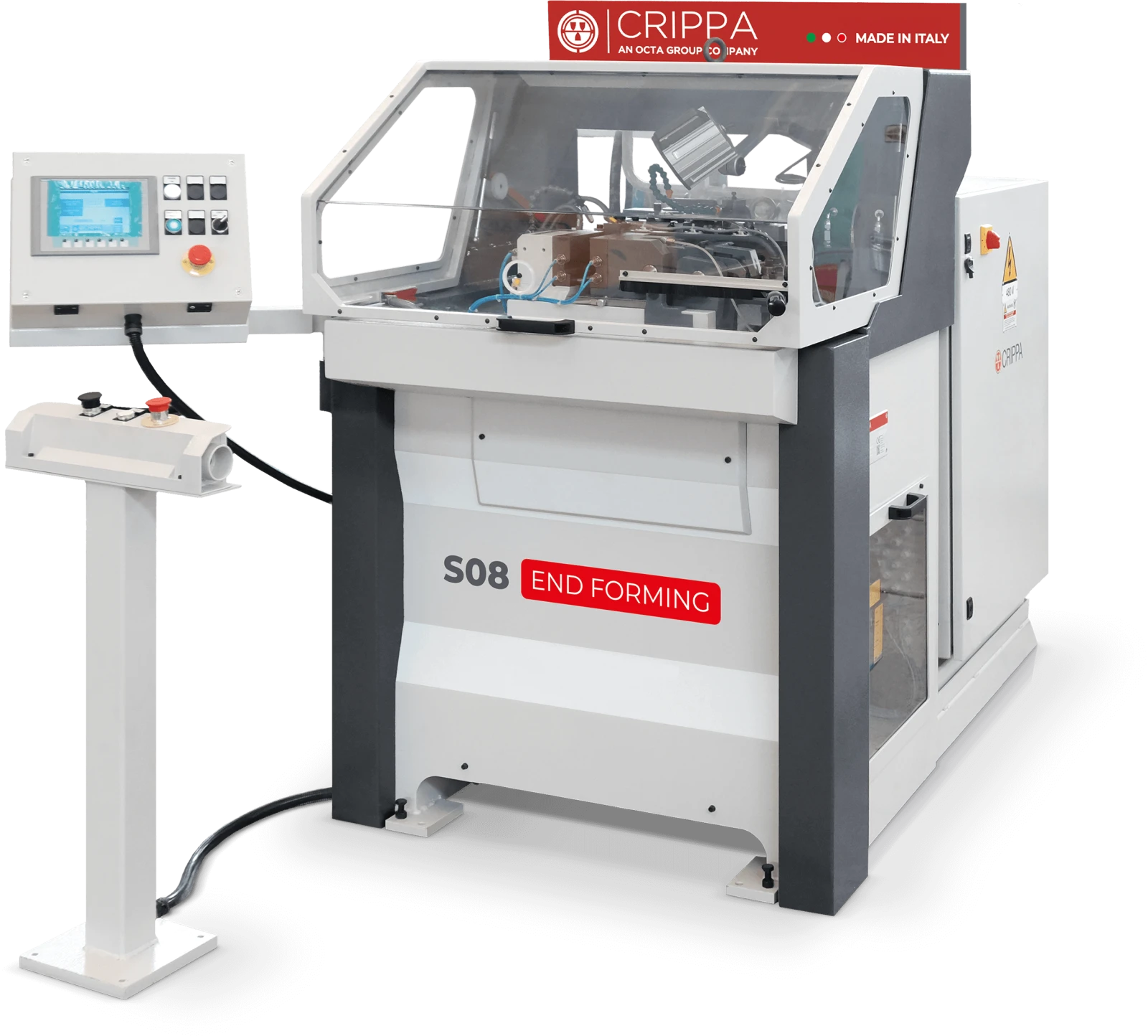

Crippa Rapid Series S08
Compact and intelligent, these machines contain all of Crippa-SMI’s know-how.
Endforming machines from the Rapid Series are extremely compact and designed to meet less complex production needs, while guaranteeing high levels of accuracy. The extremely compact ergonomics of the endforming machines in this line makes them easy to move and highly suitable for integration into new and existing work cells, also with Profinet communication protocol. The S0 and S1 machines have PLC with self-learning programming systems.
Description
The SO is a remarkably compact end-forming machine for simple production needs while still maintaining high precision. Available in 5, 8, and 16 tons, the SO is capable of performing a maximum of four steps in one cycle. Its unparalleled compactness makes it easy to move, to integrate into new or existing work cells, to maintain, and to change tools and parts. The industry-standard Profinet communication protocol is utilized for data collection and machine control. This machine is equipped with an adjustable tube positioning system that contains a tube presence sensor. For an intuitive operator-machine interaction, this machine is fitted with a touch screen panel with electronic function. The SO is designed to integrate into the Smart Factory system.
Technical Features
| Tool change | Horizontal | |
| Max Dia. Tube | 42 | |
| CNC model | Siemens PLC | |
| Deformation force | 8 | |
| Max deformation length | 150 | |
| Forming speed | 5000 | |
| Clamp force | 12 | |
| Clamp length | 42 | |
| Tool change step | 80 | |
| Step nr. | 3-4 | |
| Tool change speed | 32000 | mm/min |
| Dimensions L x W x H | 1500X1878X1000 | mm |
Fields of application
- Automotive
- Medical
- Cycles
- Motorcycles
- Leisure
- HVACR
