Crippa Coilbender
Tailored answers to your production needs
For almost 80 years Crippa has been in dialogue with its customers, analysing the needs of the market and developing products and services to respond promptly to the different requests coming from different sectors. Thanks to this experience and to our know-how, the T Series was born. A series of tube bending machines very different from each other but kept together by the same goal: responding to the needs of a specific production sector as a tailor would do with a tailored suit.
Description

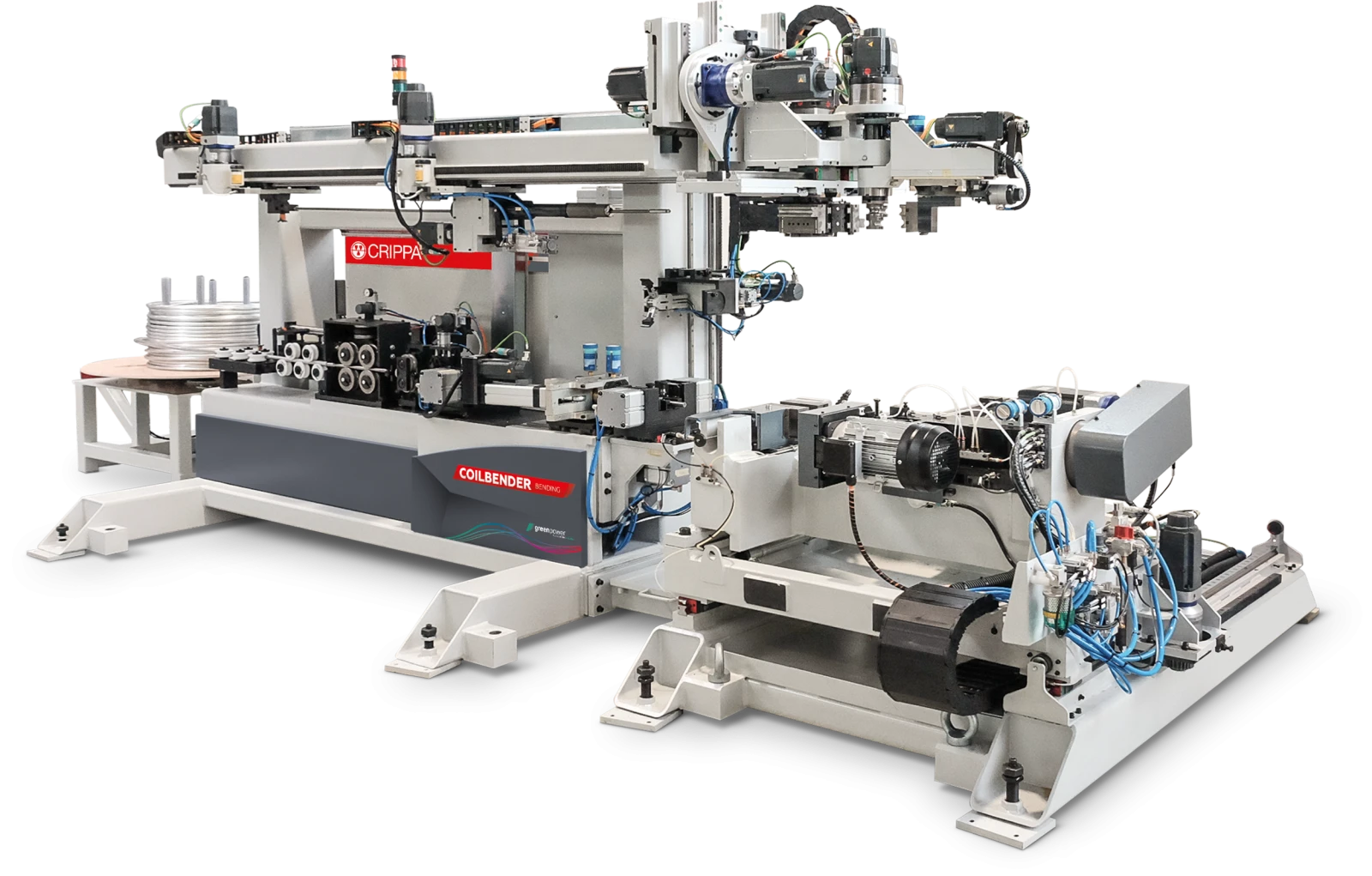

A new interpretation of the coil bending process: a quick, efficient, and compact solution for mandrel-assisted tube bending starting directly from the coil. COILBENDER integrates these features into one system:
A motorized reel with a tension control on the tube.
- Horizontal and vertical straightening systems with sets of roller drive for the tube directly from the reel.
- An orbital cutting system with a wheel and a pneumatic shear.
- The latest generation of the “Fully Electric” reversed tube-bending machine, right and left bends with a mandrel for tubes with a diameter of up to 25 mm and a CNC loading system.
- An electric endforming machine with a 5-ton deforming force, 2 CNC axes, and sideways collapsing movement.
- An effective and compact integrated unloading system for the processed tube
The machine is managed by Siemens SINUMERIK 840D sl accessible from a single console. The simplified UII (User ISO Interface) software on the machine allows simulation and optimisation of the bending programs. This machine is designed to integrate into the “Smart Factory” system.
Technical Features
| Bending direction | Right and left | ←&→ |
| Max Dia. Tube (R=350-450 N/mm²) | 25×2 | mm |
| No. CNC axes | 12 | |
| Max. bending radius | 120 | mm |
| Max length tube | 800 | mm |
| Max. bending speed | 354 | °/sec |
| Bending resolution | ±0.05 | mm |
| Max speed Y axis | 120 | m/min |
| Resolution of Y axis | ±0.05 | mm |
| Tube advancement speed | 100 | m/min |
| Deformation force | 5 | Ton |
| Max deformation length | 150 | mm |
| Clamp force | 7.5 | Ton |
| Clamp length | 42 | mm |
| Tool change step | 80 | mm |
| Tool change speed | 45000 | mm/m |
| Voltage | 400 | V |
| Mains frequency | 50 | Hz |
| Power | 20 | kW |
| Weight | 5000 | kg |
