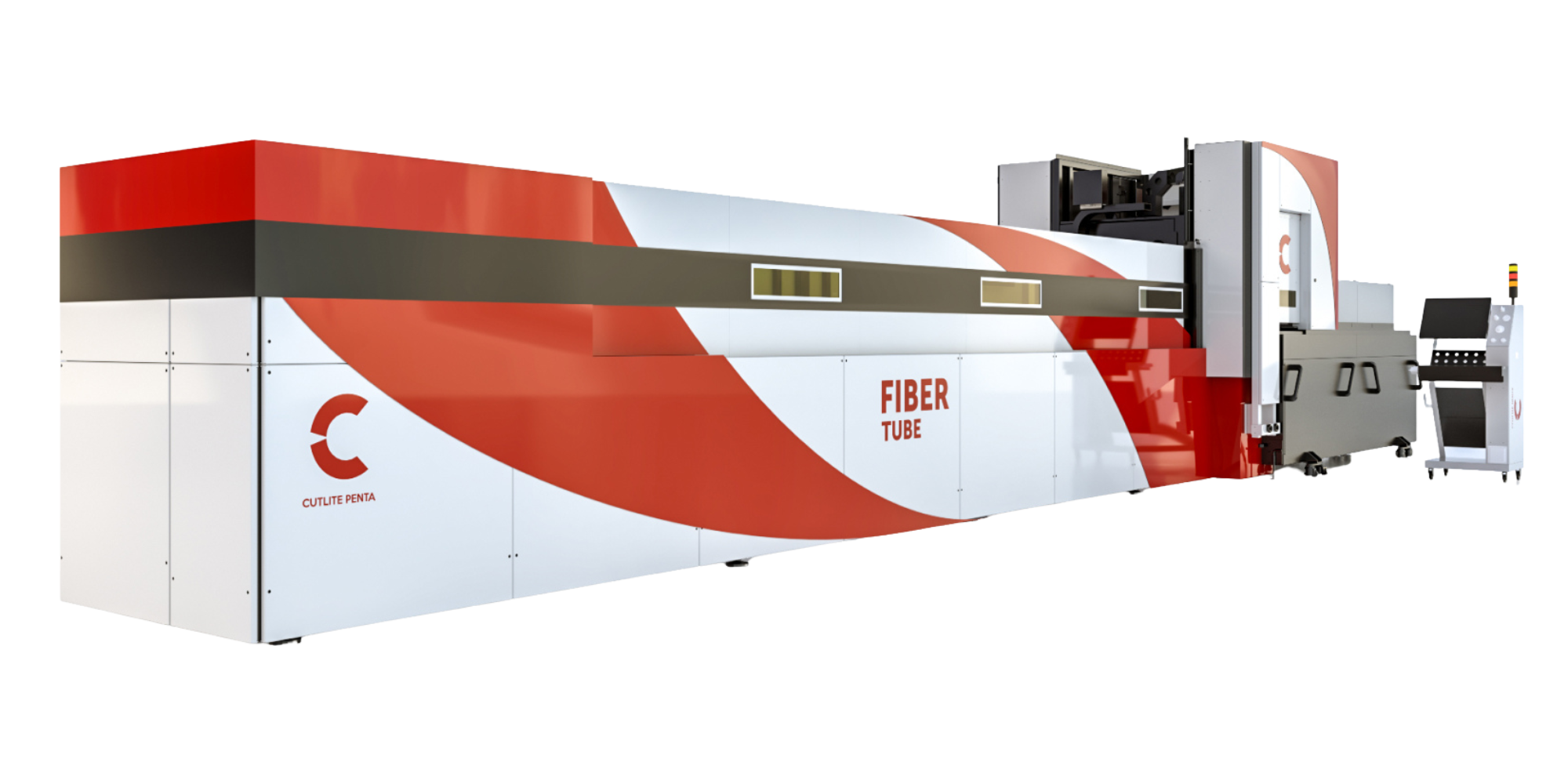

Cutlite FIBER TUBE Laser Cutting Machine
Performance You Can Count On
Cutlite Penta’s Fiber Tube system represents the next evolution in high-performance tube processing. Designed for precision, flexibility, and fully automated operation, the Fiber Tube line delivers finished parts, complete iwth all required cutting operations, in a single cycle. This system eliminates the need for multiple machining centers and reduces handling, setup, and processing times dramatically.
Description
SMART Weld
The SMART weld option allows the machine to detect the position of the weld bead (both external and internal) before the bar is loaded into the machine, while the previous bar is still being processed.
Tube Size Detection
Tube size optical detection sensor.
SMART Camera
Multiple cameras may be installed inside the laser cabin for multi-angle remote viewing. One camera is included with the system.
SMART Automation
Cutlite America offers various automation options to allow for optimization of the work phases, without significant idle times for loading and unloading operations.
SMART Mandrel (Optional)
Electro spindle with a 10-bay automatic tool change device, to execute flow drilling and tapping up to M12.
SMART Cleaning (Optional)
Device for collecting internal scraps on a round tube.
Available Configurations
- Bar Loading: 21.3 ft, 29.5 ft, or 39.4 ft
- Unloading Length: 9.8 ft
- Laser Power Options: 1kW – 6kW (expandable upon request)
Compatible Materials
- Mild Steel
- Stainless Steel
- Alloy Steel
- Aluminum Alloys
- Brass
- Copper
