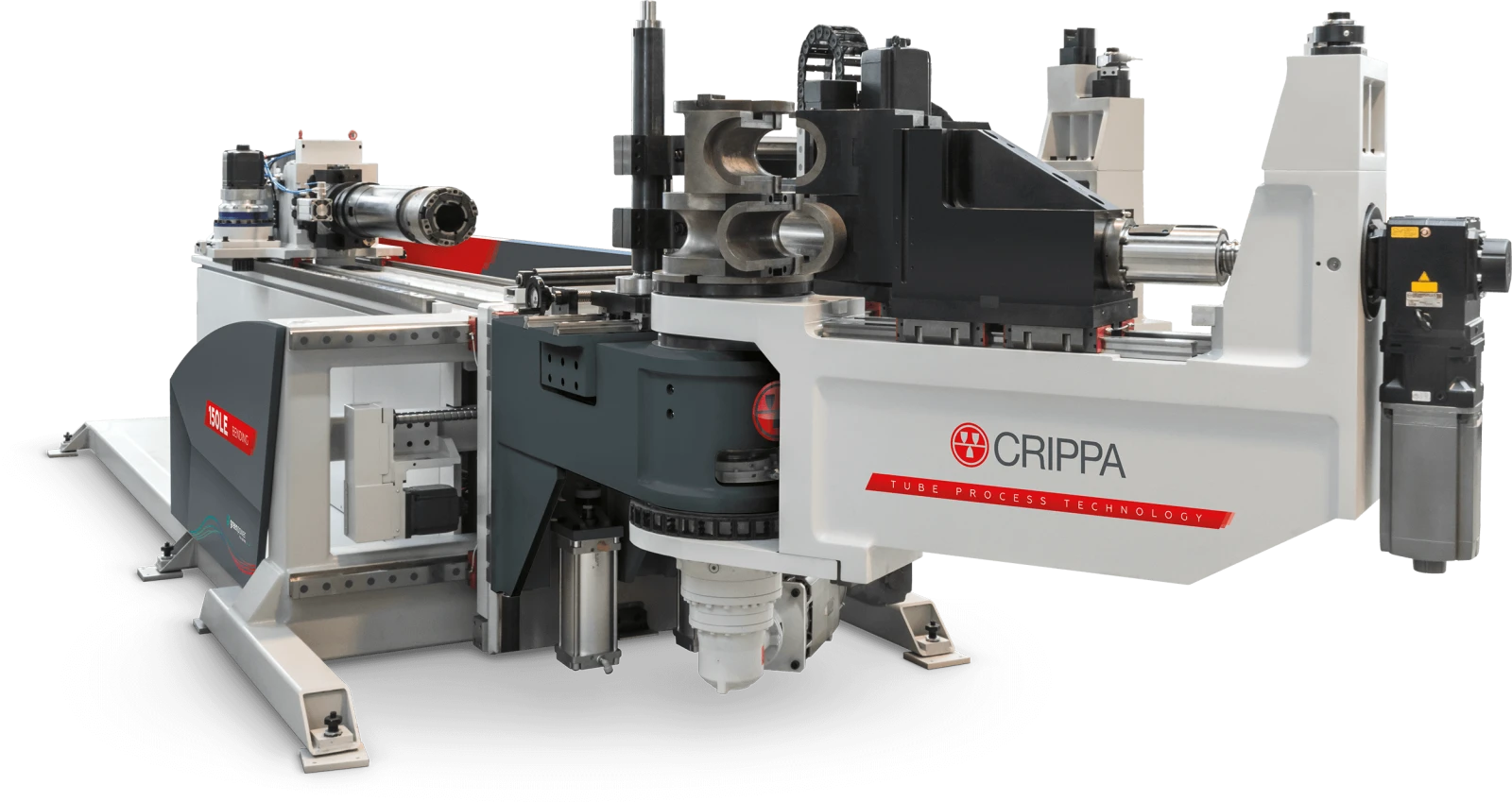

Crippa 150LE

Compact and versatile, the 150LE is a tube bending machine that fulfils most of the market’s production demands, which normally exclude include additional processing cycle such as cutting or the completion of extremely complex geometries requiring several bending planes. This machine is designed to be extended with or without a recovery cycle and to be easily integrated with devices for automatic tube loading and unloading. Multistack and multiradius, it can bend up to two 150-mm planes, or up to three 100-mm planes with thrust bending. It is also equipped with a 75 kN direct transmission booster. The machine can even produce bends with CLR/DIA ratio lower than 0.8. All movements flow through a recirculating roller guides and high load thrust screws are positioned behind clamping elements, a solution that increases machine rigidity and precision. Moreover, the bending head’s pneumatic support system guarantees energy savings and higher efficiency. The 9 axes of the machine are driven by absolutely digital motors with “Full Electric” technology managed by Siemens SINUMERIK 840D sl. The operator can interact intuitively with the machine using the UII “User ISO Interface” three-dimensional graphical software on a 19” LCD touch screen. The UII  also facilitates the programming, the simulation, and the optimisation.
